2018-5-28

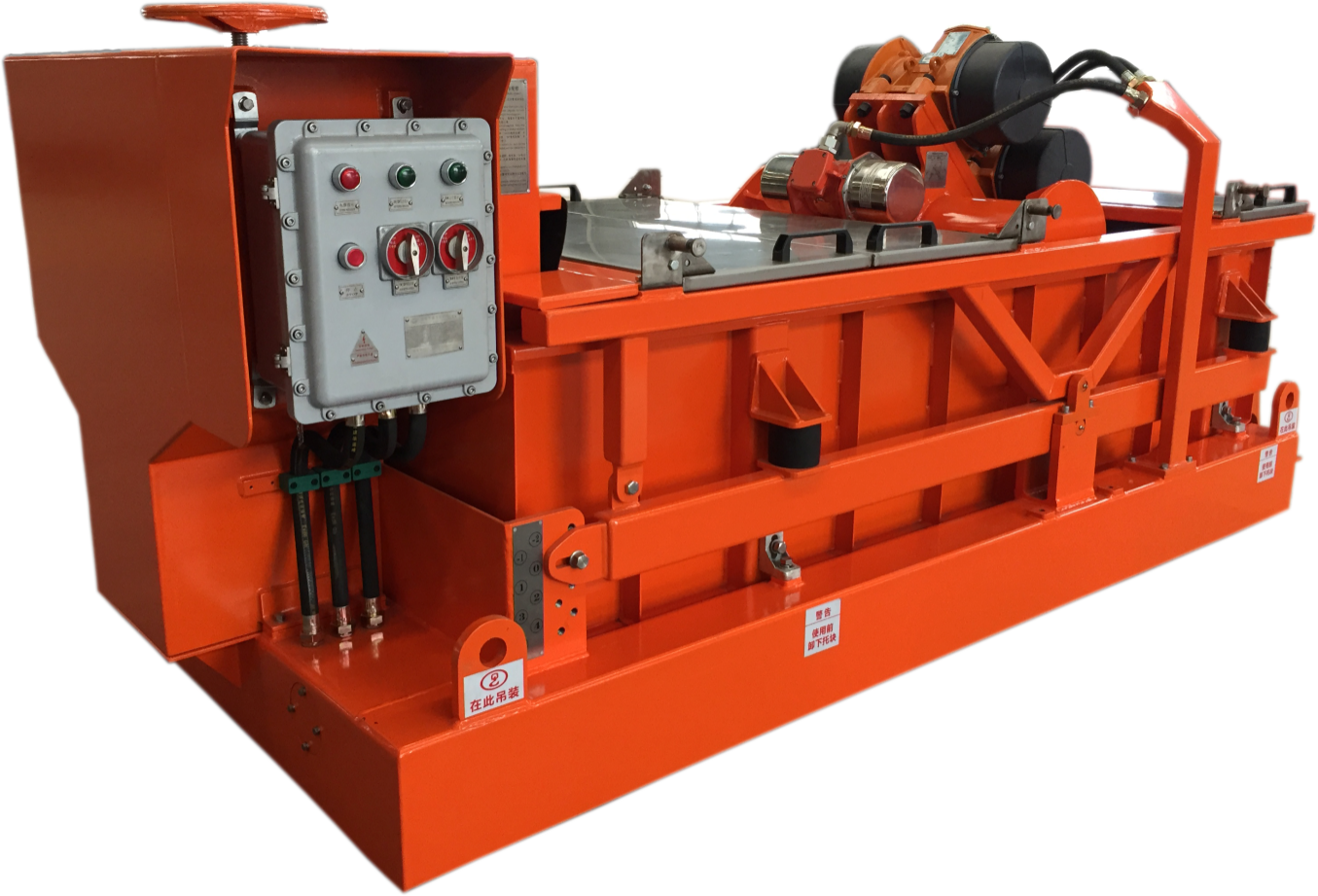

The dual motion shale shaker can operate in the balanced elliptical motion and the linear motion.

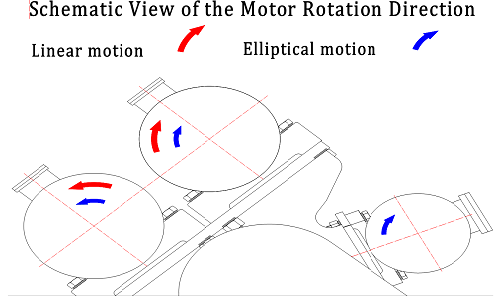

It can be excited by three short motors (2 main motors and 1 auxiliary motor) for the elliptical motion, and 2 main motors for the linear motion.
Operation Video:
Specification:
Model |
68I |
Vibration Motion |
Balanced Elliptical |
Maximum Capacity m³/h |
140 |
Main Motor |
CDX15/3810-G/D |
Auxiliary Motor |
MVE1100/15D |
Deck Angle Adjustment |
Manual Adjustment By Screw |
Quantity of screens (pcs) |
4 |
Screen Size (mm) |
1050×700×40/23 |
Screen Mesh |
40-240 |
Screen Area (㎡) |
2.92 |
G Force |
≤7.5G |
Amplitude mm |
6.52~7 |
Deck Angle Range(° ) |
-2~+5° |
Height of Feed Inlet (mm) |
900 |
Explosion Protection Standard |
ExdⅡBT4, IP65 |
Weight (kgs) |
1980kg |
Dimension (mm) |
3300×1530×1400 |
If you need futher information or have any question, please feel free to contact us.
