Dewatering Unit LOLDW01

2017-12-12

The LOLDW01 DEWATERING UNIT is a self contained portable system that minimizes waste volume from closed loop drilling operations or waste fluids treatment projects.

It is designed to substantially reduce drilling waste disposal costs and environmental impact.

The LOLDW01 dewatering unit works by processing and producing clean fluids suitable for re-use on site as well as creating the semi-dry solids which are more compact and easier to transport and dispose of, which results in considerable cost savings due to the elimination of liquid mud for disposal. In addition, water requirements for the formulation of fresh mud are significantly reduced.

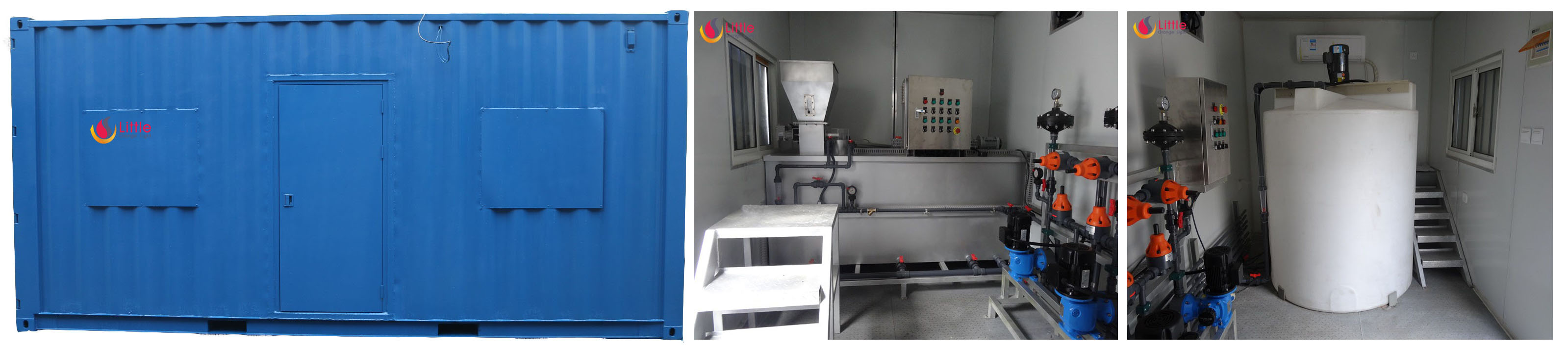

The LOLDW01 dewatering unit is compact and easily transportable with all chemical treatment equipment housed in one 20ft shipping container.

Specification:

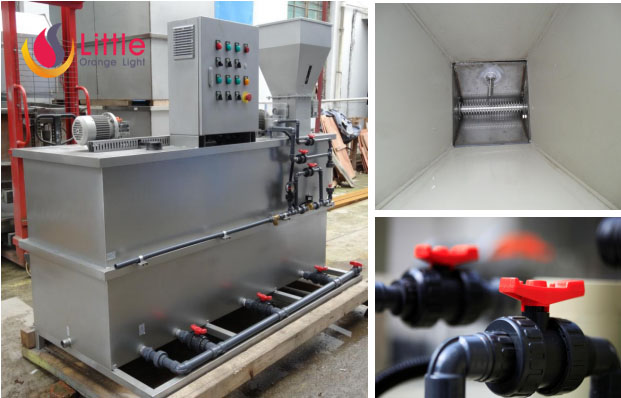

1. PAM MIXING
Power	1.5kW
Concentration of Solution	0.01-0.1%
Chemical Solution Capacity(0.1%)	1500L/h

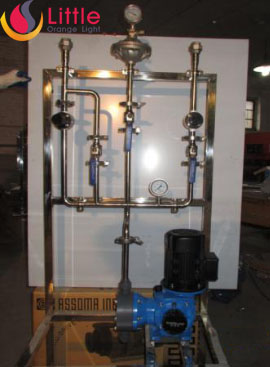

2.Dosing Pump for PAM Solution
Capacity	0 - 510 L/hr
Max Pressure	5 Bar
Power	0.37kW x 2

3. PAC MIXING
Power	0.75kW
Concentration of Solution	1-10%

4. Dosing Pump for PAC Solution
Capacity	0 - 90 L/hr
Max Pressure	7 Bar
Power	0.37kW x1

Key Benefits:

The requirements for a waste pit is greatly reduced.

Significant reduction in the transportation of drill water to site is achieved.

Reduction in the volume of waste fluid requiring disposal.

All water-based effluents from the rig site can be collected and processed, floor wash down and mud pit residues.

The removal of fine solids limits potential damage to reservoir zones and leads to higher production rates .

If you need futher information or have any question, please feel free to contact with us.
