Grooving Machine

The Grooving Machine is applicable for forming circular channel at the end of seamless ssteel tubing, galvanized pipes, plastic-lining pipes and stainless steel pipes etc, to facilitae the mouting of circular pipe clamps. It's an ideal tool for construction industry and pipeline construction sectors.

The major moving unit of this machine consists of a rotating spindle directly driven by a reduction motor, resulting in a reduced loss of mechanic power. The feeding movement is realized by manual hydraulic system.

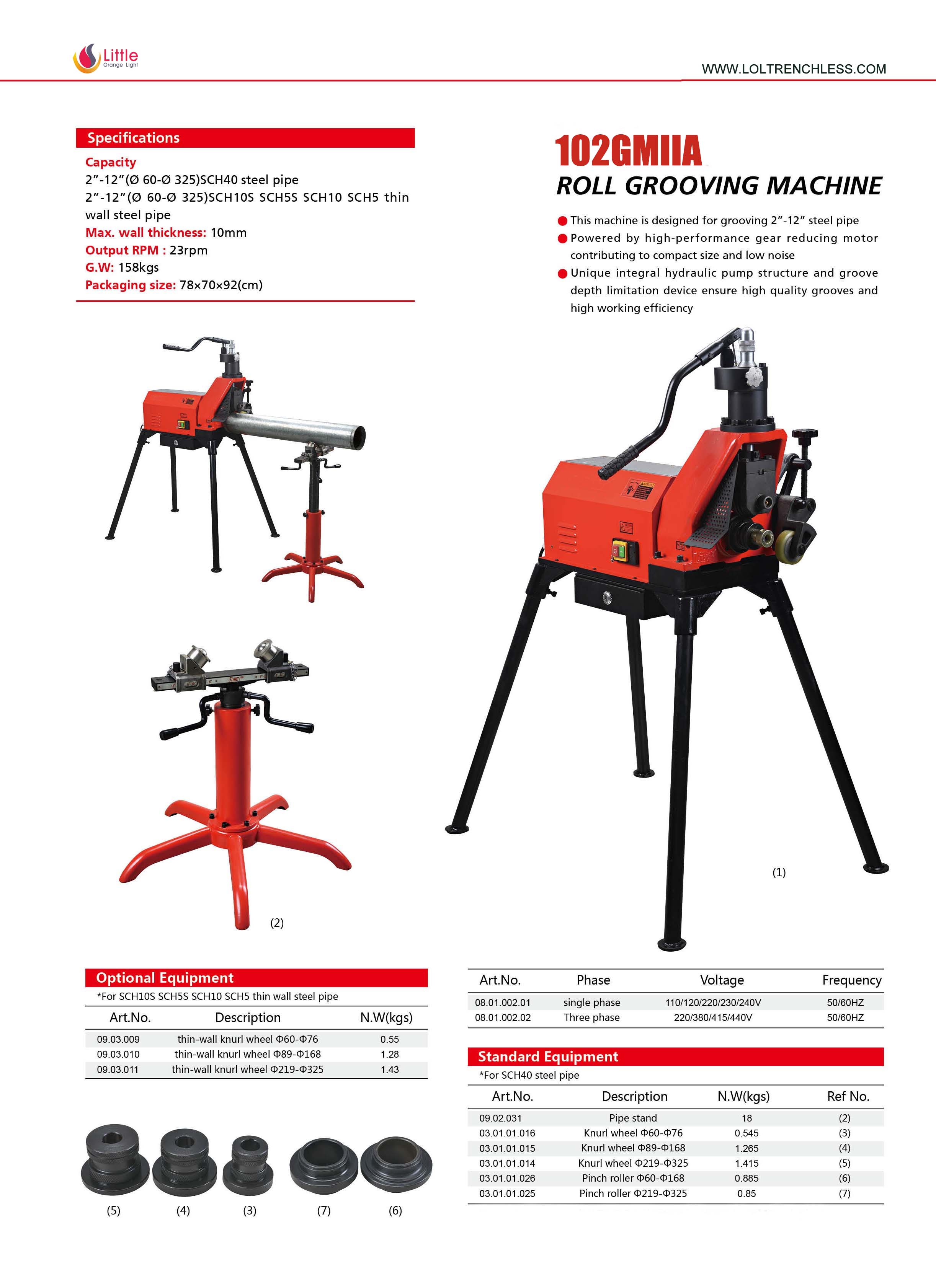

The model 102GMIIA is for the 2"-12" pipes to be channeled with the specification as below:

• Max diameter allowed for pipes to be channeled: 325mm
• Mind diameter allowed for pipes to be channeled: 60mm
• Max wall thickness allwed for pipes to be channeled: 10mm
• Max working pressure: 8000kg
• Max oil cylinder pressure: 40Mpa
• Capacity of oil tank: 150ml
• Speed: 23 rpm
• Electrical motor: Three Phase-750W/ Single Phase-1100W / 1500W

If you need futher information or have any question, please feel free to contact us.
