Grouting Machine

2018-5-26

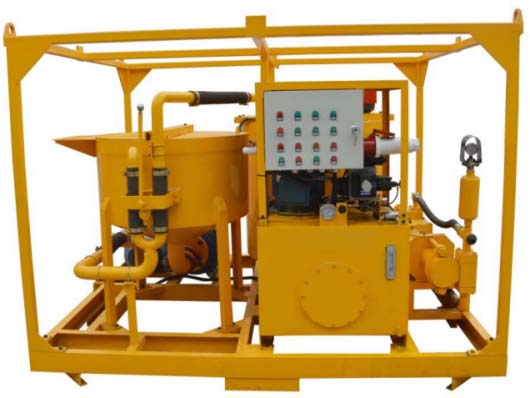

8335080070PIE Grouting Plant is a combination of the slurry mixer, the agitator and the grouting pump.

grouting plant

It is used for the preparation of the bentonite slurry or the cement slurry in the applications of highway, railway, hydropower, construction, mining, other ground and underground construction.

High speed vortex mixer ensures to blend the slurry quickly and evenly, with water and cement or bentonite quickly mixed into the homogeneous slurry.Then the mixed slurry is to be delivered to the slurry storage drum with one agitator to avoid the slurry depositing. Grouting pump injects from the mixing drum.

The grouting plant can reach a continuous mixing and grouting in operation. The grouting pump is full hydraulic driven with the electric motor with grouting pressure adjustable in the stepless mode.

Feature:

  • Pump output is 0-70L/min and pump pressure is 0-7Mpa with the step-less adjustment.
  • Double-cylinder and single-acting grouting pump: grouting continuous with low pulse.
  • Grouting pump outlet is equipped with buffer to reduce the grouting pressure fluctuation.
  • Mixer and agitator switch is by using squeeze handle for the safe and reliable operation.

Application:

  • Pipe Jacking / Micro-tunneling
  • Civil engineering - dam, tunnel, subway, mine, soil nailing wall, diaphragm wall, anchor, cable trench and anchor grouting.
  • Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting
  • Mine application - roadway reinforcement, backfill, waterproof grouting.

Specification:

Description

Data

Grouting Plant

8335080070PIE

Dimension

2590*2100*1980mm

Weight

1950kg

Mixer

Capacity

350L

Output

5m3/h

Motor Power

15Kw

Rated Speed

1450rpm

Agitator

Capacity

800L

Motor Power

1.5KW

Rated Speed

35rpm

Pump (Hydraulic Twin-cylinder)

Output

0-70L/min
70L/min at 3Mpa

Pressure

0-7MPa

Power

15Kw
