How To Buy A Mud System-Hydracyclone?

2018-3-10

In addition to the shale shakers, another way to size the processing capability of the mud recycler is to look at the hydrocyclone.

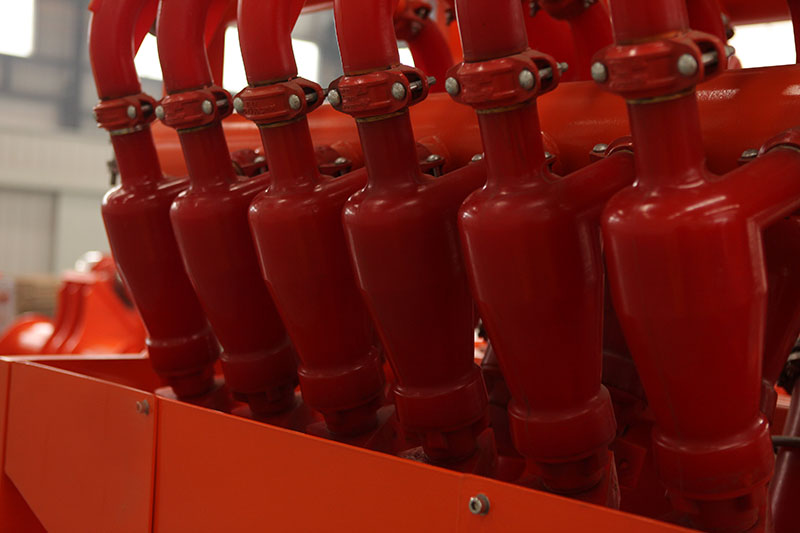

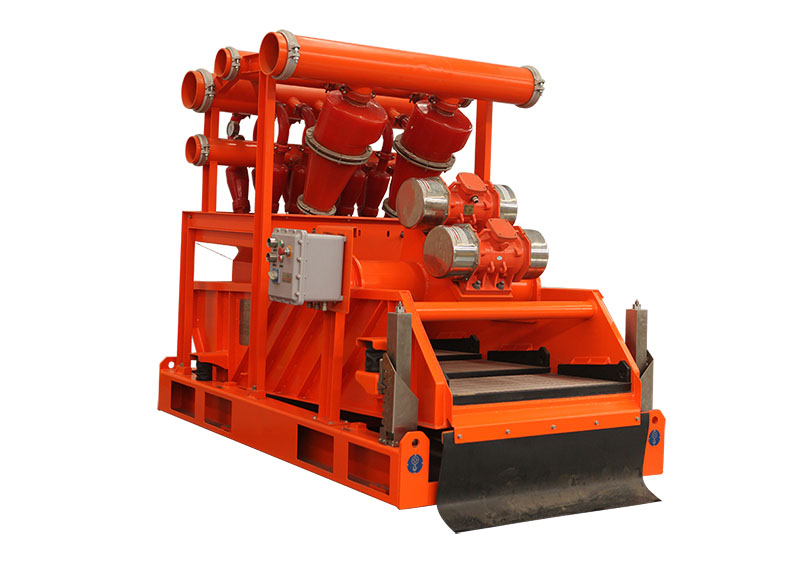

mud cleaner hydracyclone

Depending on the size of the mud recycling system, cone size will be 4, 5, 10 or 12 in. Each size cone has a micron “cut point,” and represents the size of the smallest particle the cone can “pull.” Four- and 5-in. cones have a 20-micron “cut point,” and 10- and 12-in. cones have a 74-micron “cut point.”

Smaller mud systems normally have two section tanks, with a ”dirty” tank under the scalping shaker and a “clean” tank under the mud cleaner (shaker with desilting cones), while larger systems can have three section tanks with scalping, desanding and desilting.

One hydrocyclone processes liquid at a rate of 50 gpm/ 4-in. cone, 80 gpm/ 5-in. cone, and 500 gpm/ 10-in. or 12-in. cone. Some manufacturers’ volume amount for their respective cone sizes may differ than those cited herein, but these are the most common within the industry for reference purposes.

Maintaining proper pressure is essential for the hydrocyclones to work effectively, with the normal operating pressure range for 4- and 5-in. cones of 30 to 40 psi; 10- and 12-in. cones of 23 to 35 psi. Pressure above 45 to 50 psi cause premature internal cone wear, and lower pressure down around 20 to 22 psi is a “red flag” that you better consider rebuilding the centrifugal(s) to maintain pressure in the optimum range.

-To be continued-
