Optical Imaging Guidance System

The guiding principle of the optical imaging guidance system is to observe the LED Optical Target in the place of pilot bit with the camera, and display the images captured on the LED screen. The LED light target status is capable of responding to pilot bit in real-time. By observing the status of image of LED optical target display in LED screen, the driller can judge the status of pilot bit and timely adjust the oblique palm plate of bit to correct the deviation of jacking direction.

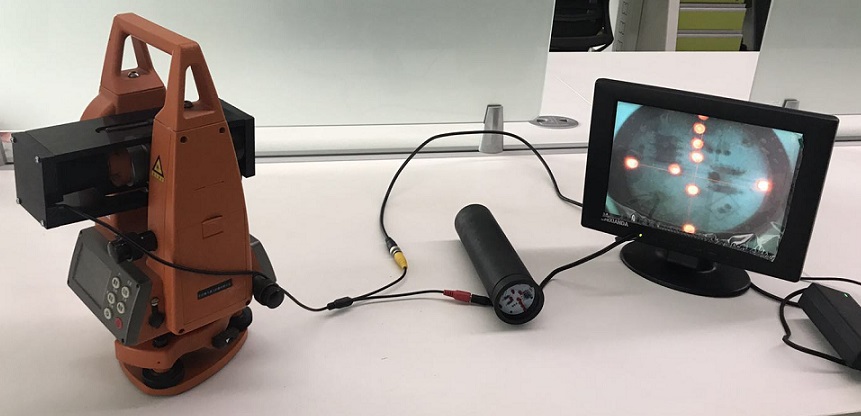

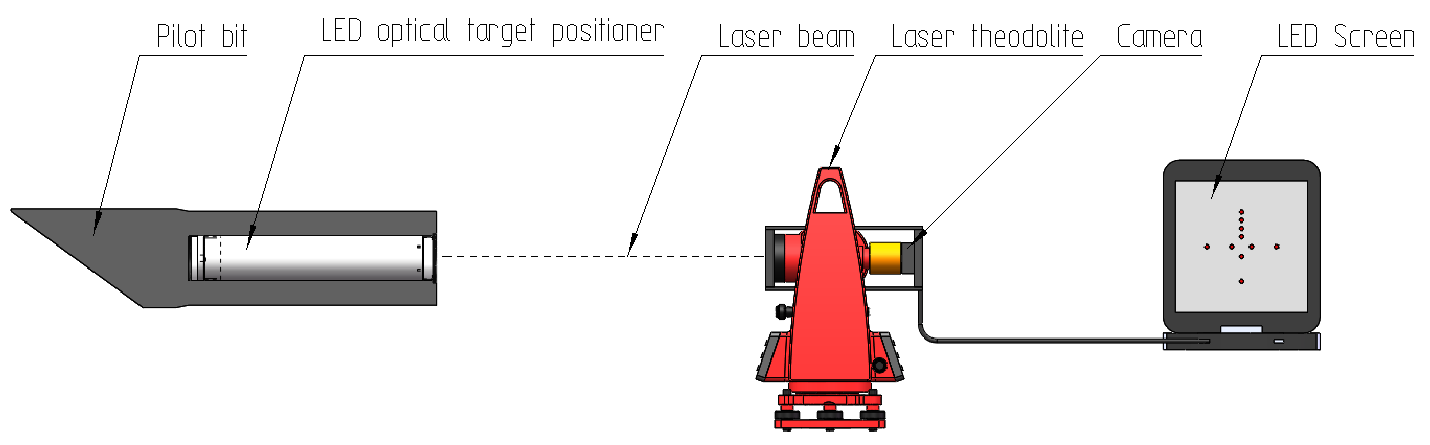

Optical imaging guidance system mainly consists of pilot bit, LED optical target positioner, laser theodolite, camera, LED screen and other parts. As the figure shows below.

Technical Parameter:

Parts	Parameters	Index
LED Optical Target Positioner	Using Time	15 days
	Guidance Range	70 m
	Guidance Precision	3mm/50m
	Main Body Dimensions	φ54*225mm
Observation System	Theodolite Type	EDJ2-JC
	Camera Resolution	2 megapixel
	10inch HD Monitor	LED 300
	Charger Output Voltage	4.2V
	Charger Output Current	2000mA
	Charge Time	14hours

If you need futher information or have any question, please feel free to contact us.
